3D Printing_OLA 3D Printing

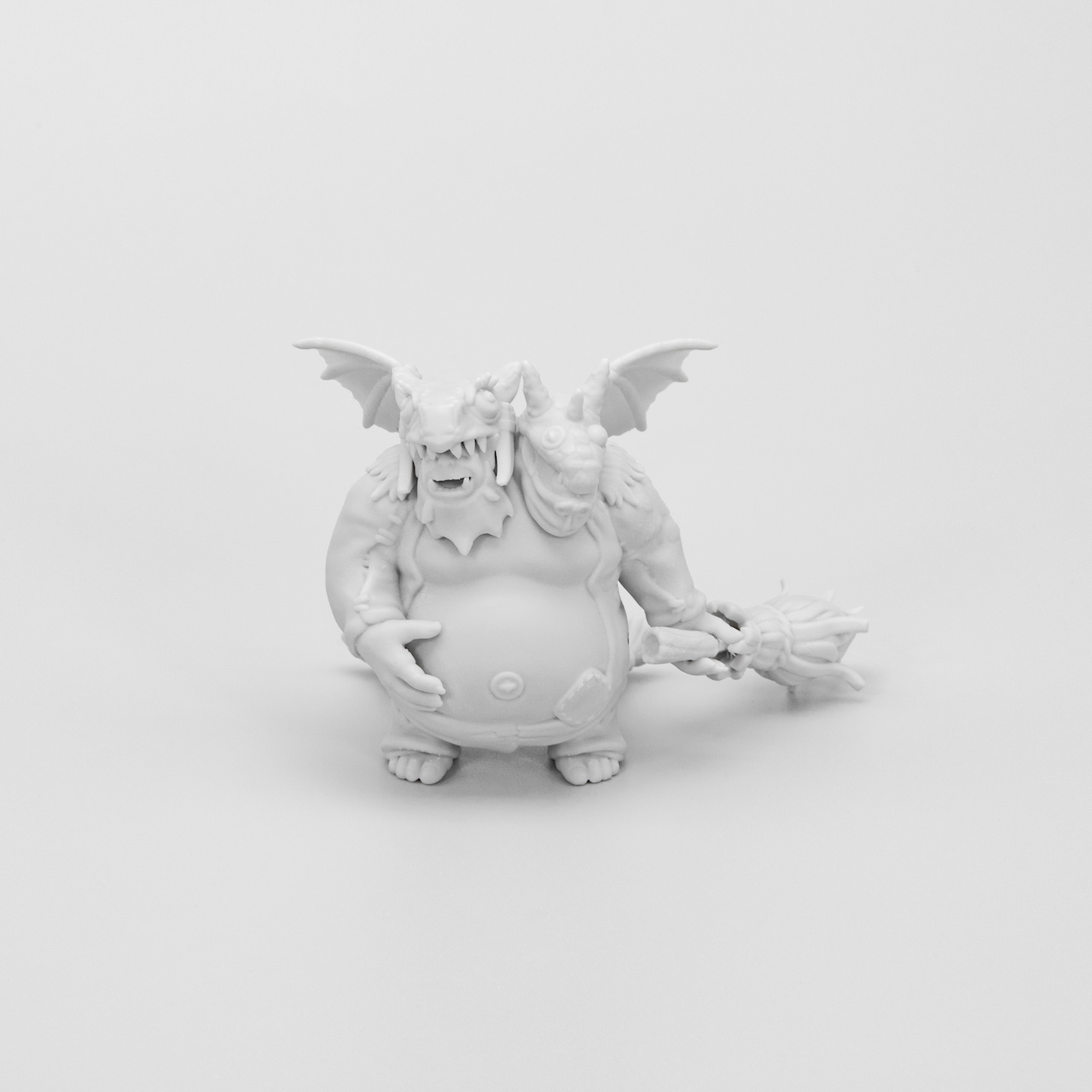

OLA7100(SLS-Nylon)

More Details

OLA 7100 Nylon is a high-performance SLS material designed for functional prototyping and end-use parts. With excellent thermal stability, mechanical strength, and toughness, it is ideal for complex structural parts that require durability. The material prints without support structures, making it suitable for geometrically intricate components.

Mechanical Properties
Tensile Strength: 33.4-41.4 MPa
Tensile Modulus: 1600 MPa
Elongation at Break: 6.3-16%
Bending Strength: 46.3 MPa
Bending Modulus: 1300 MPa
Notched Impact Strength: 4.9 KJ/m²
Unnotched Impact Strength: 13.2 KJ/m²
Thermal Properties
Heat Deflection Temperature: 129°C
Melting Point: 183°C
Electrical Properties
Dielectric Constant (60 Hz): 3.5

Max. Part Size:

350mm x 350mm x 400mm

Tolerance and Precision：

±300 µm or ±0.3%

View Data Sheet

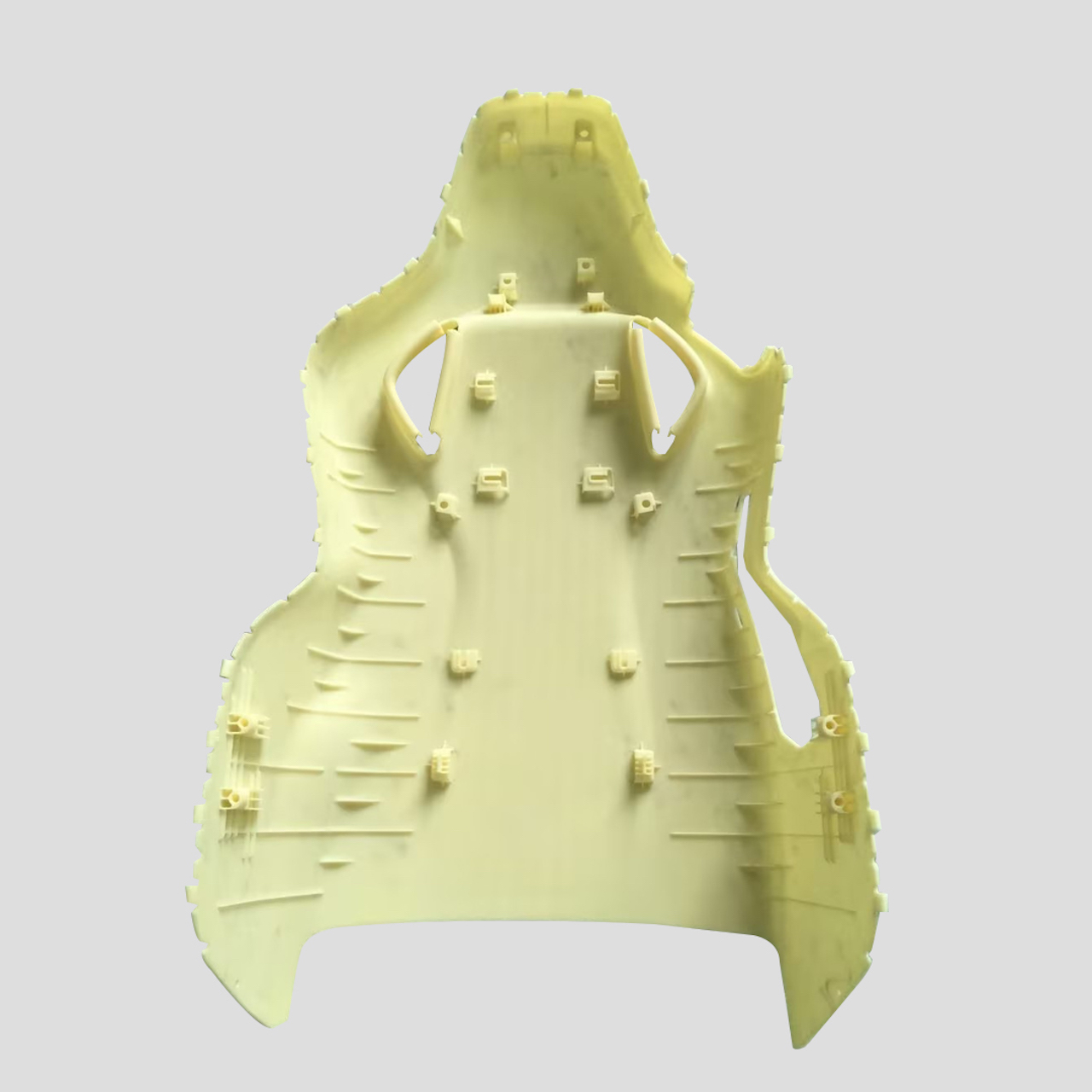

OLA8228Pro(SLA-RESIN)

3D Printing SLA Resin Green-yellow

More Details

As an industrial-grade ABS-like resin, OLA 8228Pro maintains exceptional mechanical properties and dimensional stability in harsh environments, ideal for functional verification and low-volume production.

Thermal Properties
Heat Deflection Temperature: 58℃ - 65℃
Glass Transition Temperature: 60℃ - 68℃
Mechanical Properties
Tensile Modulus: 2150 - 2370 MPa
Tensile Strength: 25 - 30 MPa
Elongation at Break: 12% - 20%
Flexural Modulus: 2650 - 2750 MPa
Flexural Strength: 60 - 75 MPa
Notched Impact Strength: 58 - 70 J/m
Hardness
Shore Hardness: 76 - 85

Max. Part Size:

1000mm x 1000mm x 585mm

Tolerance and Precision：

±200 µm or ±0.2%

View Data Sheet

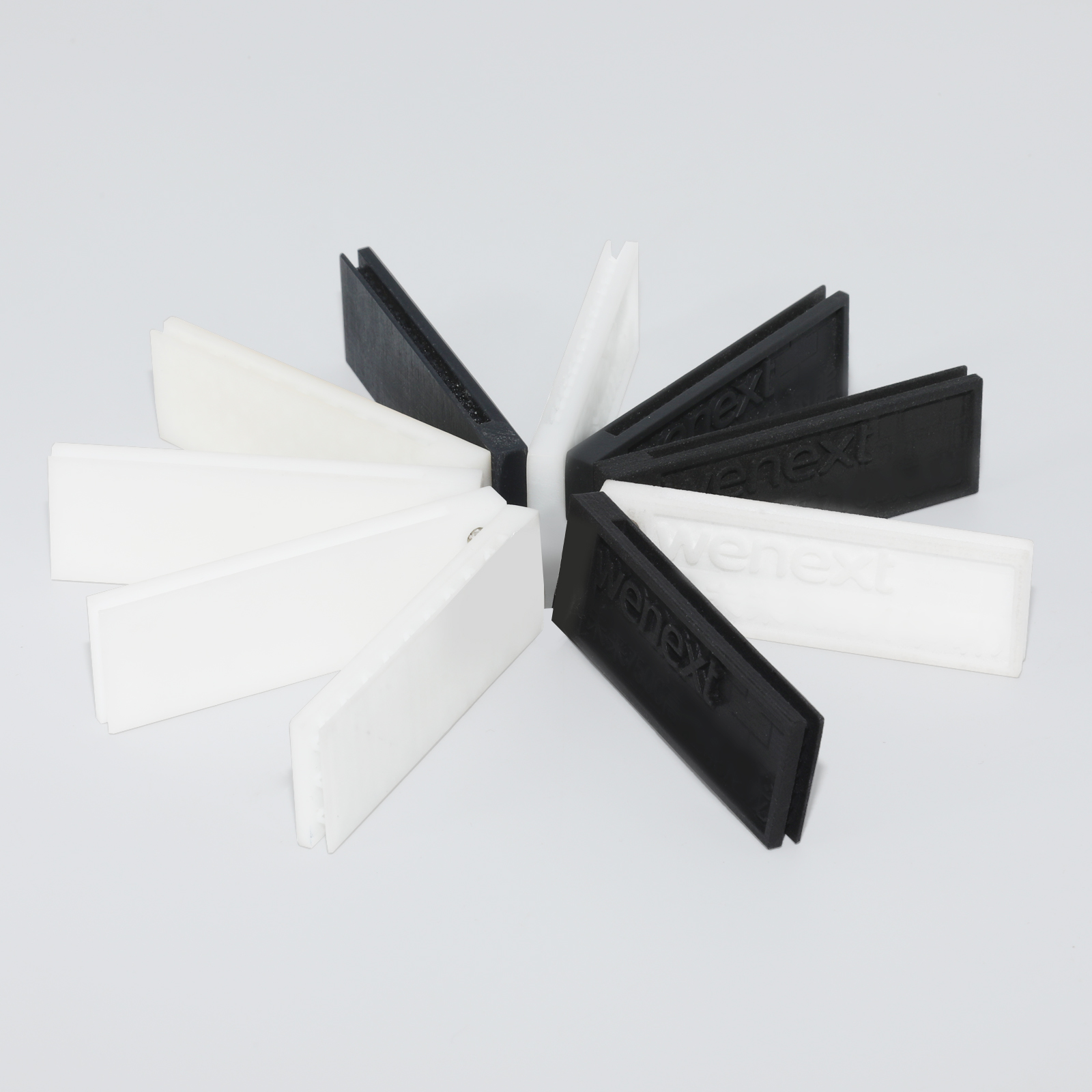

Polyoxymethylene(Vacuum Casting-POM)

Vacuum Casting Black White High strength&High rigidity

More Details

A transparent, easy-to-process, easy-to-demold, low-shrinkage polyurethane resin with mechanical properties similar to POM.

Thermal Properties
Heat Deflection Temperature (HDT @ Load): 84°C - 100°C
Mechanical Properties
Tensile Strength: 60 MPa - 73 MPa
Linear Shrinkage: 0.3%
Bending Modulus: 1790 MPa - 3400 MPa
Bending Strength: 78 MPa - 92 MPa
Impact Strength: 6 kJ/m² - 14 kJ/m²
Hardness: 84 - 87 Type D
Elongation at Break: 0.8% - 16%

Max. Part Size:

900mm x 650mm x 600mm

Tolerance and Precision：

±500 µm or ±0.5%

View Data Sheet

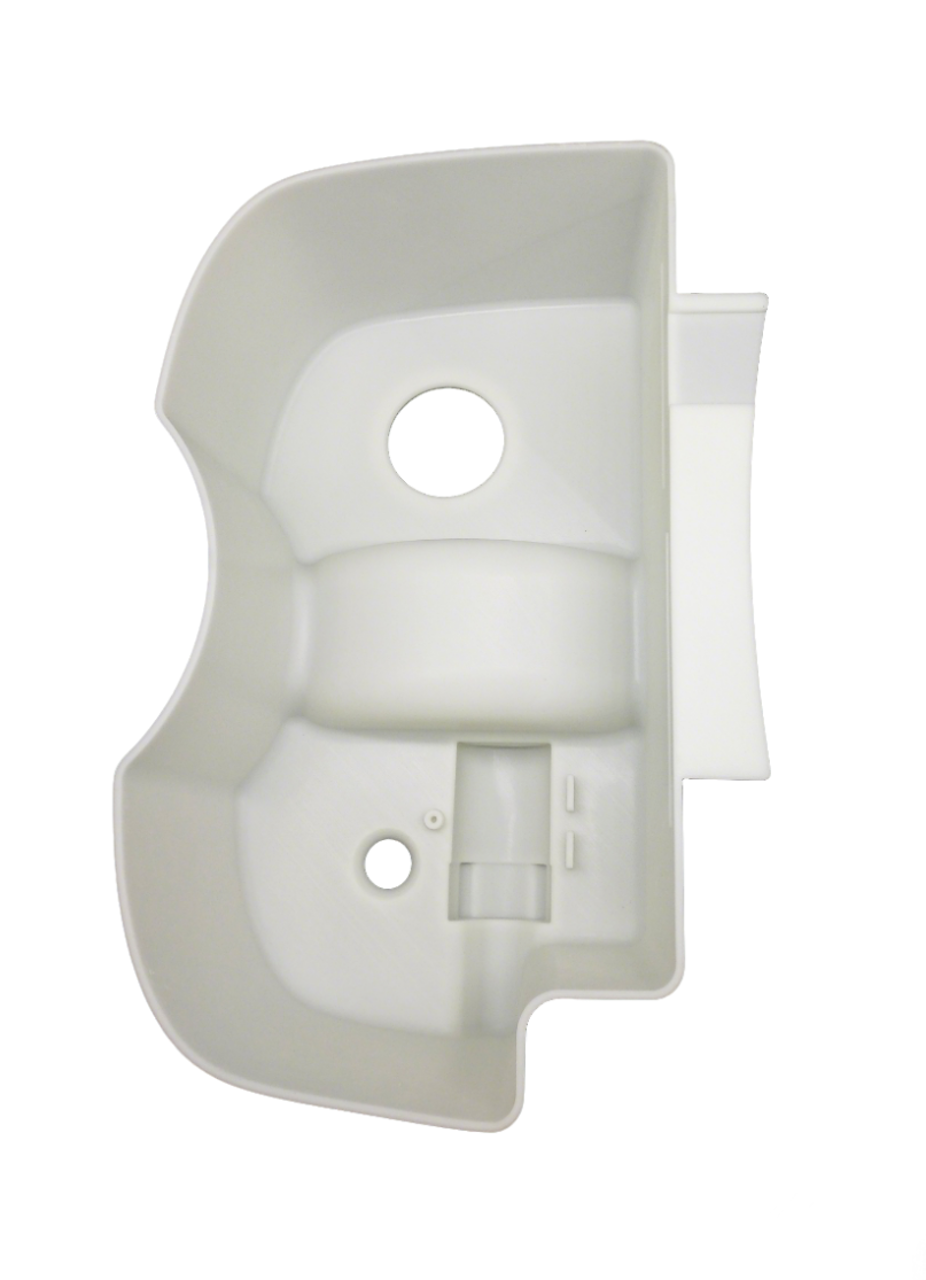

OLA ASA(FDM-PLASTIC)

3D Printing FDM Plastic Ivory White

More Details

This engineering thermoplastic is specially formulated for outdoor applications, combining ABS-like performance with superior weather resistance. Excellent UV resistance, Superior chemical resistance, High temperature endurance, Outstanding toughness

Mechanical Properties
Tensile Strength: 30-33 MPa
Tensile Modulus: 1950-2010 MPa
Elongation at Break: 3-9%
Bending Strength: 48-60 MPa
Bending Modulus: 1630-1870 MPa
Thermal Properties
Heat Deflection Temperature: 91-98°C
Shore Hardness: 82
Impact & Flammability Properties
Notched Impact Strength: 64-321 kJ/m²
Flammability Rating: HB

Max. Part Size:

1000mm x 610mm x 610mm

Tolerance and Precision：

±200 µm or ±0.2%

View Data Sheet

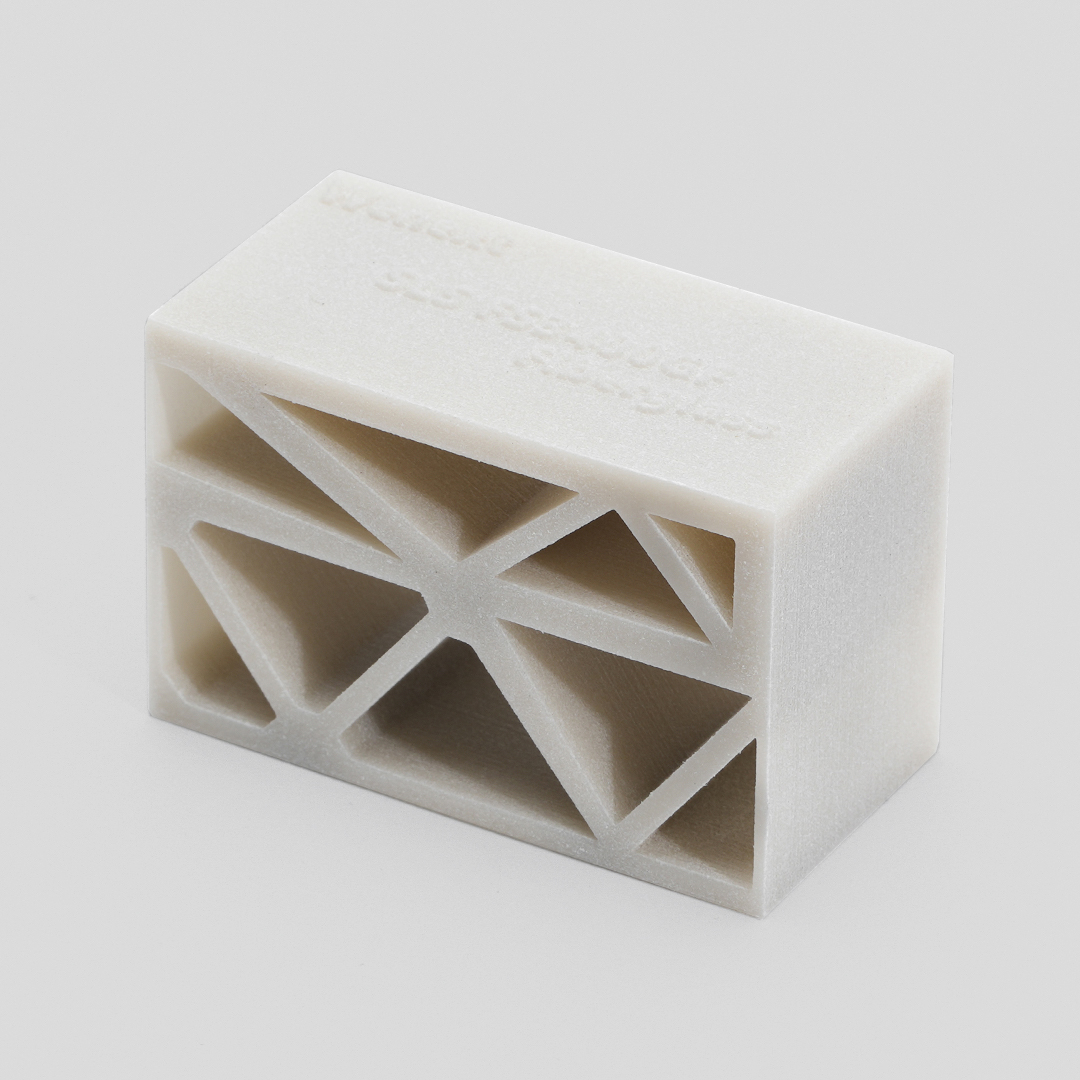

OLA7200Glass-Fiber Reinforced(SLS-Nylon)

3D Printing SLS Nylon Light gray

More Details

OLA 7200 is a glass-fiber reinforced nylon material offering significantly improved heat deflection temperature and mechanical strength compared to standard nylon. Its excellent structural integrity, stability under high temperatures, and resistance to chemicals make it a reliable choice for structural validation of product prototypes in demanding environments.

Thermal Properties
Heat Deflection Temperature: 152.4℃
Melting Point: 184℃
Mechanical Properties
Tensile Strength: 44 MPa
Tensile Modulus: 3500 MPa
Elongation at Break: 5%
Flexural Strength: 65 MPa
Flexural Modulus: 2400 MPa
Notched Impact Strength: 4.13 KJ/m²
Unnotched Impact Strength: 19.28 KJ/m²
Electrical Properties
Dielectric Constant (60 Hz): 3.7

Max. Part Size:

Equitment sizes: 350 mm × 350 mm × 400 mm

Minimum Printable Size: 350 mm × 350 mm × 400 mm

Tolerance and Precision：

±300 µm or ±0.3%

View Data Sheet

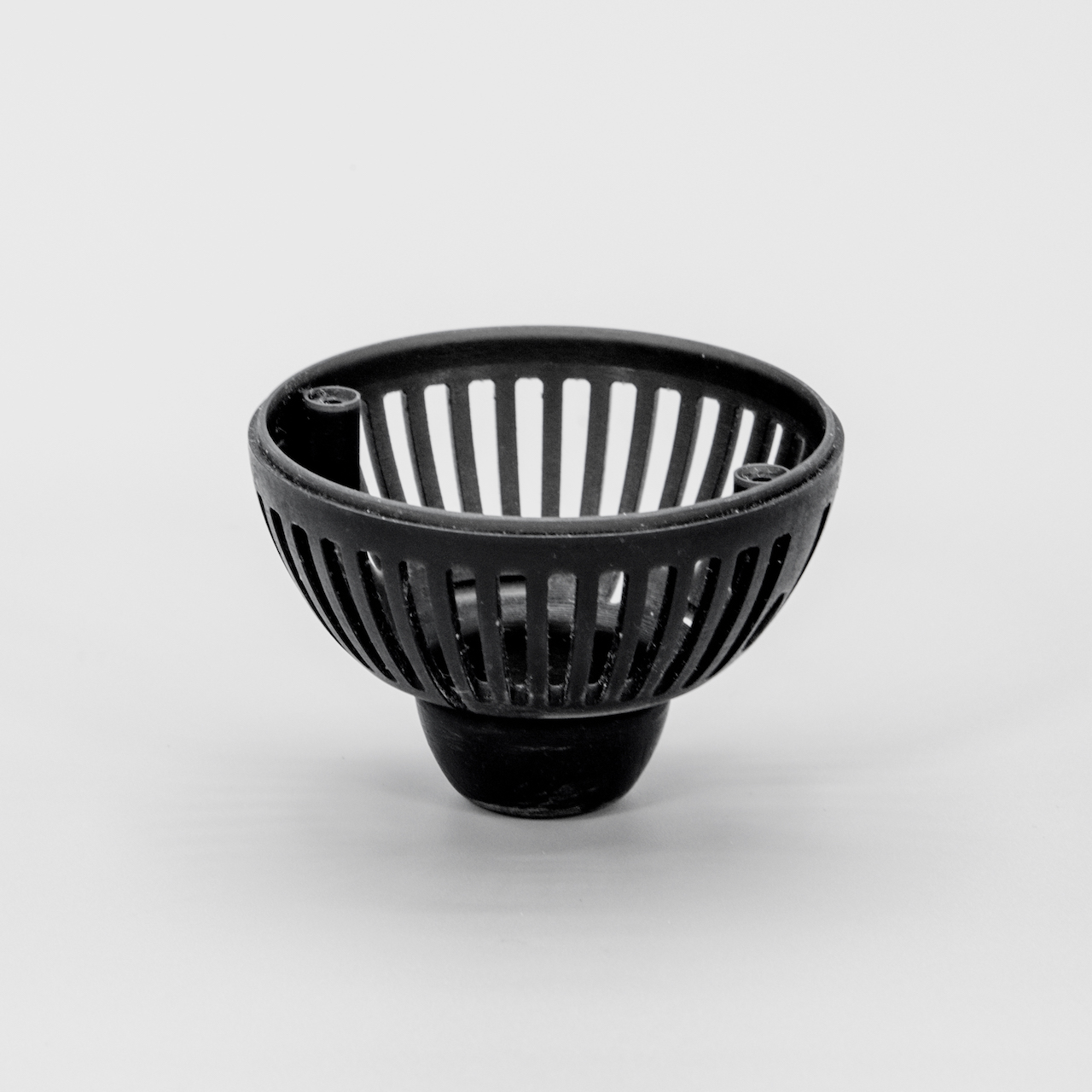

OLA8400(BK)(SLA-RESIN)

3D Printing SLA Resin Black

More Details

Specially engineered for industrial applications requiring both mechanical performance and aesthetic appeal, OLA 8400 delivers functional and decorative excellence.

Thermal Properties
Heat Deflection Temperature (ASTM D 648 @66PSI): 54~65°C
Coefficient of Thermal Expansion (TMA (T < Tg)): 90~103 × 10⁻⁶/°C
Mechanical Properties
Shore Hardness (ASTM D 2240): 78-85 Shore D
Tensile Modulus (ASTM D 638): 2,649~2,731 MPa
Elongation at Break (ASTM D 638): 7~11%
Flexural Strength (ASTM D 790): 69~75 MPa
Flexural Modulus (ASTM D 790): 2,711~2,789 MPa
Notched Impact Strength (ASTM D 25): 29~34 J/m
Poisson's Ratio (ASTM D 638): 0.4~0.44
Electrical Properties
Dielectric Constant at 1 MHz (ASTM D 150-98): 3.2~4.0

Max. Part Size:

600mm x 600mm x 400mm

Tolerance and Precision：

±200 µm or ±0.2%

View Data Sheet

Polymethyl Methacrylate(Vacuum Casting-PMMA)

Vacuum Casting Black- Translucent- White - Fully transparent Excellent surface finish

More Details

A transparent, easy-to-process, easy-to-demold, low-shrinkage polyurethane resin with mechanical properties similar to acrylic (PMMA).

Mechanical Properties
Tensile Strength (ISO527-84): 55 MPa
Flexural Modulus (ISO178-93): 1500 MPa
Flexural Strength (ISO178-93): 90 MPa
Elongation at Break (ISO37-77): 13%
Hardness (ISO868-85): 78 Shore D
Thermal Properties
Heat Deflection Temperature (T.M.A Meter): 50°C - 60°C
Linear Shrinkage: 3 mm/m
Maximum Casting Thickness: 5 mm
Full Cure Time (at 23°C): 4 days
Impact Properties
Impact Strength (ISO179/ID-94): 50 kJ/m²

Max. Part Size:

900mm x 650mm x 600mm

Tolerance and Precision：

±500 µm or ±0.5%

View Data Sheet

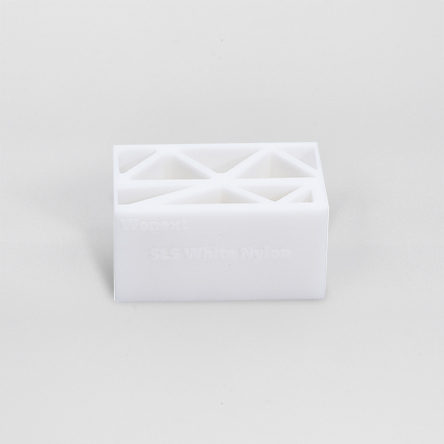

OLA7000(Farsoon)(SLS-Nylon)

3D Printing SLS Nylon White

More Details

OLA 7000 Farsoon is a high-performance SLS nylon material known for its excellent heat deflection temperature and strength, making it suitable for functional parts. Post-processing with chemical vapor smoothing significantly enhances part quality by smoothing and sealing surfaces, improving water and air tightness, ensuring consistent post-treatment, maintaining dimensional accuracy, and reducing both labor and dyeing costs with a uniform color finish.

Thermal Properties
Heat Deflection Temperature: 134°C
Melting Point: 183°C
Mechanical Properties
Tensile Strength: 33.3–39.8 MPa
Tensile Modulus: 1600 MPa
Elongation at Break: 11–19%
Flexural Strength: 46.3 MPa
Flexural Modulus: 1300 MPa
Notched Impact Strength: 4.9 KJ/m²
Unnotched Impact Strength: 13.2 KJ/m²
Electrical Properties
Dielectric Constant (60 Hz): 3.5

Max. Part Size:

350mm x 350mm x 400mm

Tolerance and Precision：

±300 µm or ±0.3%

View Data Sheet

LY6000(SLA-RESIN)

3D Printing SLA Resin Matte White

More Details

As an ABS-like white resin, LY6000 delivers exceptional surface quality and well-balanced performance for both functional and cosmetic verification.

Thermal Properties
Heat Deflection Temperature: 50–55℃
Glass Transition Temperature (DMA, tanθ peak): 65℃
Mechanical Properties
Tensile Strength (ASTM D638): 52–58 MPa
Elongation at Break (ASTM D638): 10%–15%
Flexural Modulus (ASTM D790): 2300–2800 MPa
Flexural Strength (ASTM D790): 80–100 MPa
Notched Impact Strength (ASTM D256): 20–30 J/m
Shore Hardness (ASTM D2240): 80D
Other Properties
Water Absorption (ASTM D570): 0.27%

Max. Part Size:

600mm x 600mm x 400mm

Tolerance and Precision：

±200 µm or ±0.2%

View Data Sheet

OLA7000EOS(SLS-Nylon)

3D Printing SLS Nylon White

More Details

OLA 7000 EOS is a premium SLS nylon material printed using German-imported EOS equipment. It features excellent mechanical properties and a fine surface finish, making it well-suited for rapid manufacturing of plastic parts, spare part production, functional prototyping, master models for vacuum casting, and other moldless applications.

Thermal Properties
Heat Deflection Temperature: 132°C
Melting Point: 183°C
Mechanical Properties
Tensile Strength: 35.8–38.6 MPa
Tensile Modulus: 1600 MPa
Elongation at Break: 5.5%–14%
Flexural Strength: 46.3 MPa
Flexural Modulus: 1300 MPa
Notched Impact Strength: 4.9 kJ/㎡
Unnotched Impact Strength: 13.2 kJ/㎡
Electrical Properties
Dielectric Constant: 3.5

Max. Part Size:

360mm x 560mm x 660mm

Tolerance and Precision：

±200 µm or ±0.2%

View Data Sheet

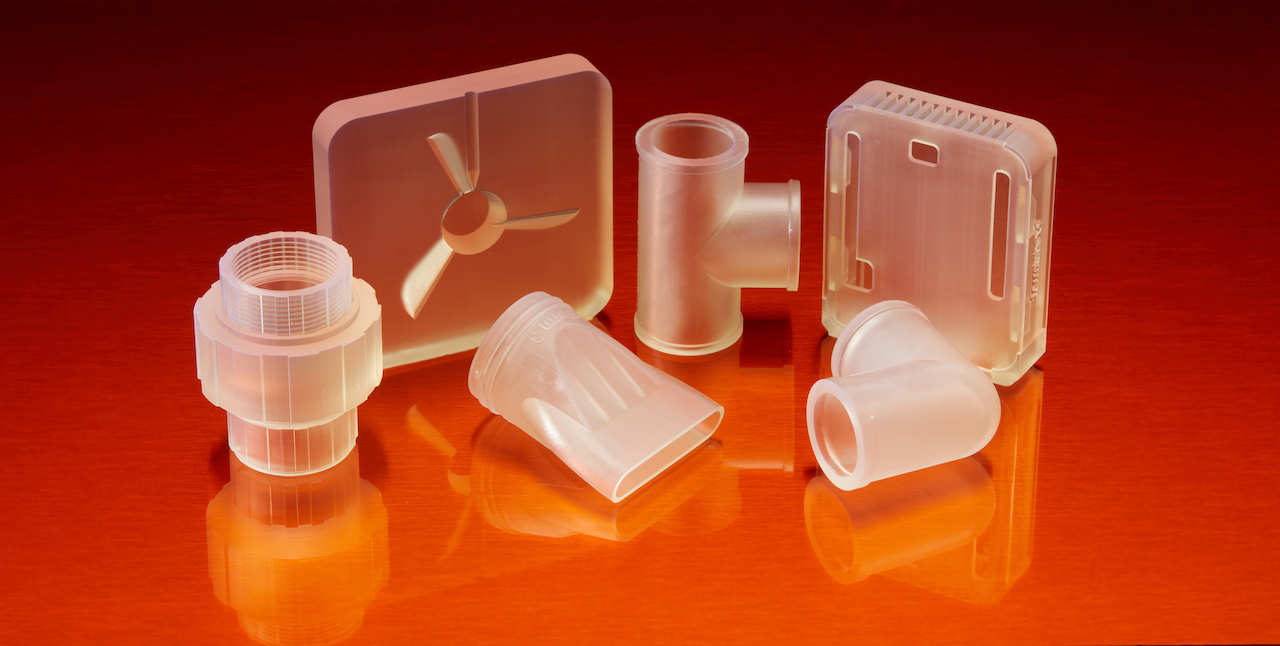

Transparent Photopolymer Resin(SLA-RESIN)

3D Printing SLA Resin Full transparent & Matte sandblasting

More Details

This professional-grade resin is specially formulated for transparent prototyping, combining optical clarity with mechanical strength.

Thermal Properties
Heat Deflection Temperature: 49℃
Mechanical Properties
Tensile Strength: 50 MPa
Shore Hardness: 87
Elongation at Break: 7.5%
Tensile Modulus: 2700 MPa
Elongation at Tensile: 3%
Impact Strength: 25 J/m
Poisson’s Ratio: 0.41
Electrical Properties
Dielectric Constant (60 Hz): 4.0
Dielectric Constant (1 kHz): 3.8
Dielectric Strength: 16.3 kV/mm
Water Absorption: 0.35%

Max. Part Size:

600mm x 600mm x 400mm

Tolerance and Precision：

±200 µm or ±0.2%

View Data Sheet

OLAP9000(BASF)(SLS-NYLON)

3D Printing SLS Nylon Light gray

More Details

OLA P9000 Nylon (BASF) is an advanced SLS material that offers a balanced combination of rigidity, toughness, and wear resistance. It is particularly suitable for producing durable jigs, fixtures, enclosures, and components that undergo frequent mechanical stress or friction. Its chemical resistance also makes it ideal for applications exposed to aggressive environments.

Mechanical Properties
Bending Strength: 33 MPa
Bending Modulus: 2000 MPa
Elongation at Break: 55%
Tensile Modulus: 1980 MPa
Tensile Strength: 16.7 MPa
Impact Strength
Notched Impact Strength (Simply Supported Beam): 3.0 kJ/m²
Notched Impact Strength (Simply Supported Beam): 17 kJ/m²
Notched Impact Strength (Cantilever Beam): 3.8 kJ/m²
Notched Impact Strength (Cantilever Beam): 14 kJ/m²
Thermal Properties
Heat Deflection Temperature: 123°C
Dielectric Constant: 3.33 (at 60Hz)

Max. Part Size:

350mm x 350mm x 400mm

Tolerance and Precision：

±300 µm or ±0.3%

View Data Sheet

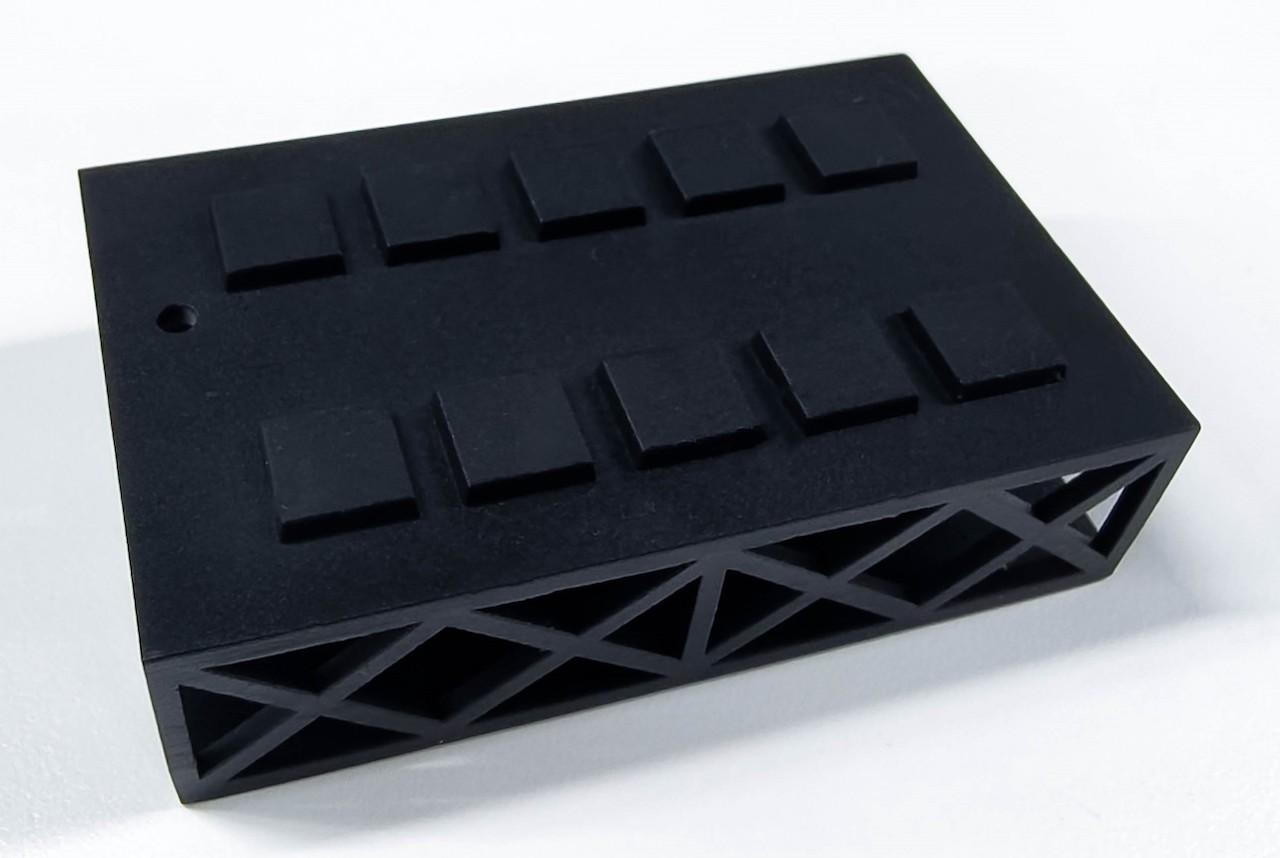

OLA8000BK(SLA-RESIN)

3D Printing SLA Resin Black

More Details

This professional black photopolymer resin delivers premium aesthetics and mechanical performance, ideal for high-end applications requiring paint-free finish.

Mechanical Properties
Tensile Modulus: 2500 MPa
Tensile Strength: 50 MPa
Elongation at Break: 5-10%
Flexural Modulus: 2290 MPa
Notched Impact Strength: 24 J/m
Thermal Properties
Heat Deflection Temperature: 50°C

Max. Part Size:

600mm x 600mm x 400mm

Tolerance and Precision：

±200 µm or ±0.2%

View Data Sheet

OLA 7200Pro Glass-Filled Nylon(SLS-NYLON)

3D Printing SLS Nylon Gray-black

More Details

OLA 7200Pro is a gray-black, glass bead–filled nylon material featuring a unique balance of excellent rigidity and good elongation at break. It is particularly suited for applications requiring high stiffness, heat resistance, and wear durability. This material is optimized for repeated use in demanding industrial environments.

Thermal Properties
Heat Deflection Temp (ASTM D648, 0.45 MPa): 184.4 °C
Heat Deflection Temp (ASTM D648, 1.8 MPa): 126 °C
Mechanical Properties
Elongation at Break (ASTM D638): 5%–8%
Tensile Modulus (ASTM D256): 2398 MPa
Tensile Strength (ASTM D638): 32 MPa
Flexural Modulus (ASTM D790): 2241 MPa
Flexural Strength (ASTM D790): 71 MPa
Notched Izod Impact (ASTM D256): 29 J/m
Unnotched Izod Impact (ASTM D256): 264 J/m

Max. Part Size:

Equipment Size: 550 mm × 550 mm × 850 mm

Minimum Build Size: 500 mm × 500 mm × 820 mm

Tolerance and Precision：

±300 μm or ±0.3%

View Data Sheet

OLA8200(BK)(SLA-RESIN)

3D Printing SLA Resin Black

More Details

This professional black engineering resin combines outstanding mechanical properties with long-term stability, ideal for demanding outdoor applications.

Thermal Properties
Heat Deflection Temperature: 58-69°C
Mechanical Properties
Shore Hardness: 78-88D
Tensile Modulus: 2649-2371 MPa
Tensile Strength: 41-58 MPa
Elongation at Break: 7-11%
Flexural Strength: 69-76 MPa
Flexural Modulus: 2722-2792 MPa
Notched Impact Strength: 29-34 KJ/㎡
Electrical Properties
Dielectric Constant: 4.2-5.0

Max. Part Size:

600mm x 600mm x 400mm

Tolerance and Precision：

±200 µm or ±0.2%

View Data Sheet

OLA 8500(SLA-RESIN)

3D Printing High precision SLA Resin

More Details

This professional-grade 3D printing resin combines exceptional toughness with high-temperature resistance, expanding possibilities for functional end-use parts.

Thermal Properties
Heat Deflection Temperature: 62°C
Mechanical Properties
Shore Hardness: 83
Tensile Modulus: 2310 MPa
Tensile Strength: 46 MPa
Elongation at Break: 24%
Flexural Strength: 73 MPa
Flexural Modulus: 2050 MPa
Notched Impact Strength: 47 J/m
Poisson's Ratio: 0.45
Water Absorption: 0.75%
Electrical Properties
Dielectric Constant (60Hz): 4.6
Dielectric Constant (1kHz): 4.2
Dielectric Constant (1MHz): 3.7
Dielectric Strength: 17.7 kV/mm

Max. Part Size:

600mm × 600mm × 400mm

Tolerance and Precision：

±200 µm or ±0.2%

View Data Sheet

OLA Heat-resistant Resin(SLA-RESIN)

3D Printing SLA Resin Transparent Red

More Details

This professional-grade resin is engineered for high-temperature applications while maintaining exceptional precision.Extreme heat resistance, High dimensional stability, Superior hardness

Thermal Properties
Heat Deflection Temperature (0.45MPa): 80℃
Mechanical Properties
Tensile Strength: 42.7 MPa
Tensile Modulus: 3235 MPa
Elongation at Break: 1.5%
Flexural Modulus: 3165 MPa

Max. Part Size:

600mm x 600mm x 400mm

Tolerance and Precision：

±200 µm or ±0.2%

View Data Sheet

OLA High-Detail Resin(SLA-RESIN)

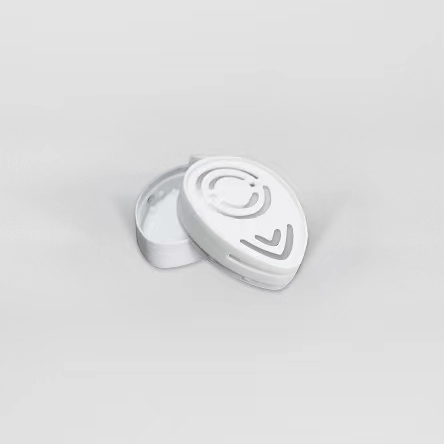

3D Printing SLA Resin Gray

More Details

Specially formulated for animation and artistic creations, this resin delivers impeccable detail fidelity. Superior surface finish, Exceptional detail reproduction

Thermal Properties
Heat Deflection Temperature: 53℃
Mechanical Properties
Shore Hardness: 83
Tensile Modulus: 2587 MPa
Tensile Strength: 47.2 MPa
Elongation at Break: 6.4%
Flexural Modulus: 2562 MPa
Other Properties
—

Max. Part Size:

600mm x 600mm x 400mm

Tolerance and Precision：

±200 µm or ±0.2%

View Data Sheet

OLA H-Temp(LCD-RESIN)

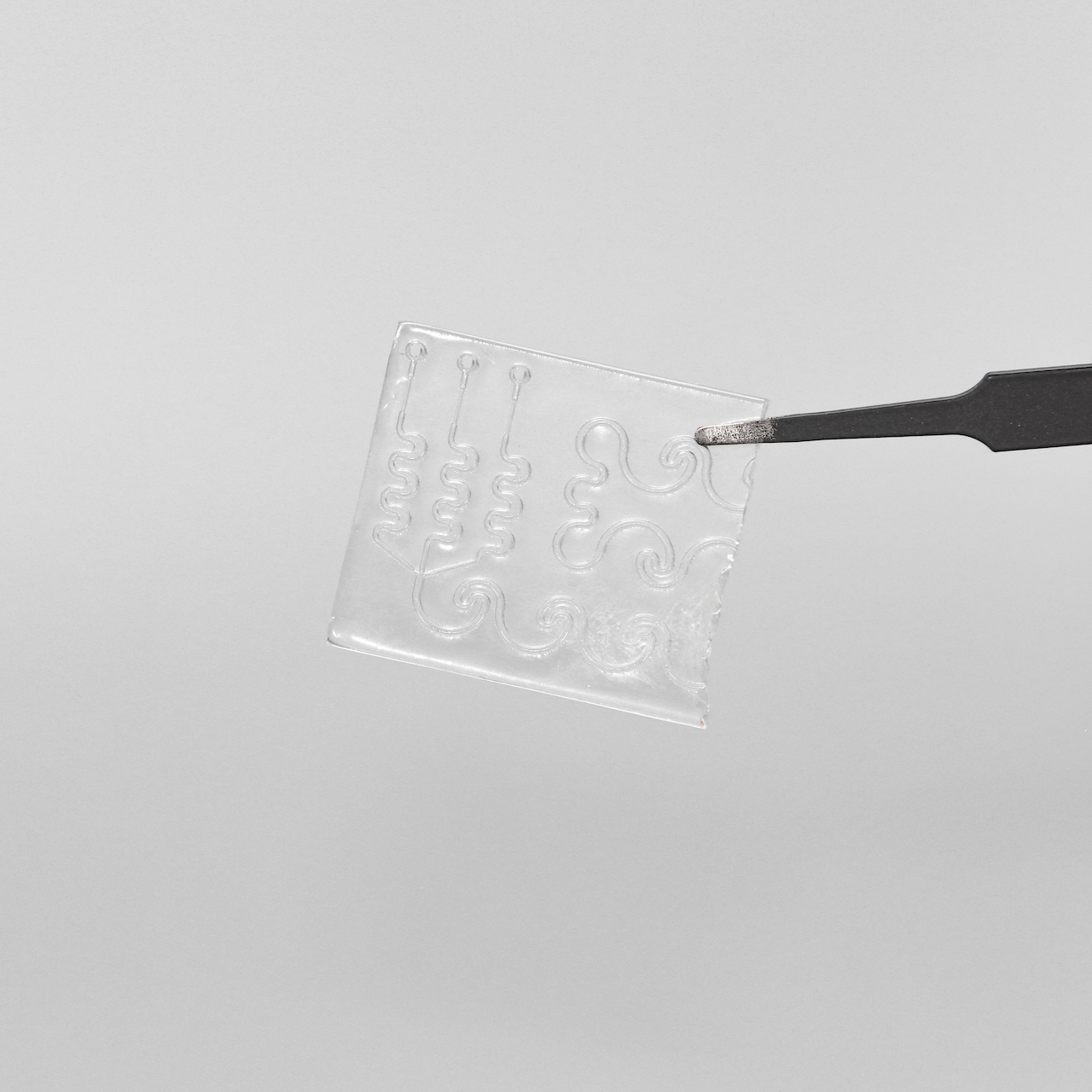

3D Printing LCD Resin Light yellow & Translucent

More Details

This resin offers the highest temperature resistance among 3D printing materials, with HDT up to 238℃ after post-curing. Extreme heat resistance, Excellent stability, Engineering-grade performance

Thermal Properties
Heat Deflection Temperature @0.45MPa: 120℃ (standard) / 238℃ (post-cured)
Heat Deflection Temperature @1.82MPa: 78℃
Mechanical Properties
Tensile Modulus: 2.8 GPa
Tensile Strength: 58 MPa
Elongation at Break: 3.3%
Flexural Modulus: 2.6 GPa
Flexural Strength: 95 MPa
Notched Impact Strength: 18 J/m

Max. Part Size:

200mm × 125mm × 210mm

Tolerance and Precision：

±100μm or ±0.1%

View Data Sheet

OLA PC20(LCD-RESIN)

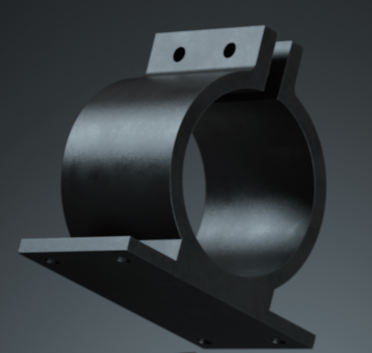

3D Printing LCD Resin Black

More Details

This engineering-grade resin delivers optimal balance of properties for end-use products and long-term applications. Strength-toughness balance, Excellent creep resistance, Production-grade stability

Thermal Properties
Heat Deflection Temperature @0.45MPa: 60℃
Mechanical Properties
Shore Hardness: 84D
Tensile Strength: 69 MPa
Tensile Modulus: 2.29 GPa
Elongation at Break: 23%
Flexural Modulus: 2.30 GPa
Flexural Strength: 109 MPa
Notched Impact Strength: 35 J/m

Max. Part Size:

198mm × 123mm × 220mm

Tolerance and Precision：

±150 µm or ±0.15%

View Data Sheet
